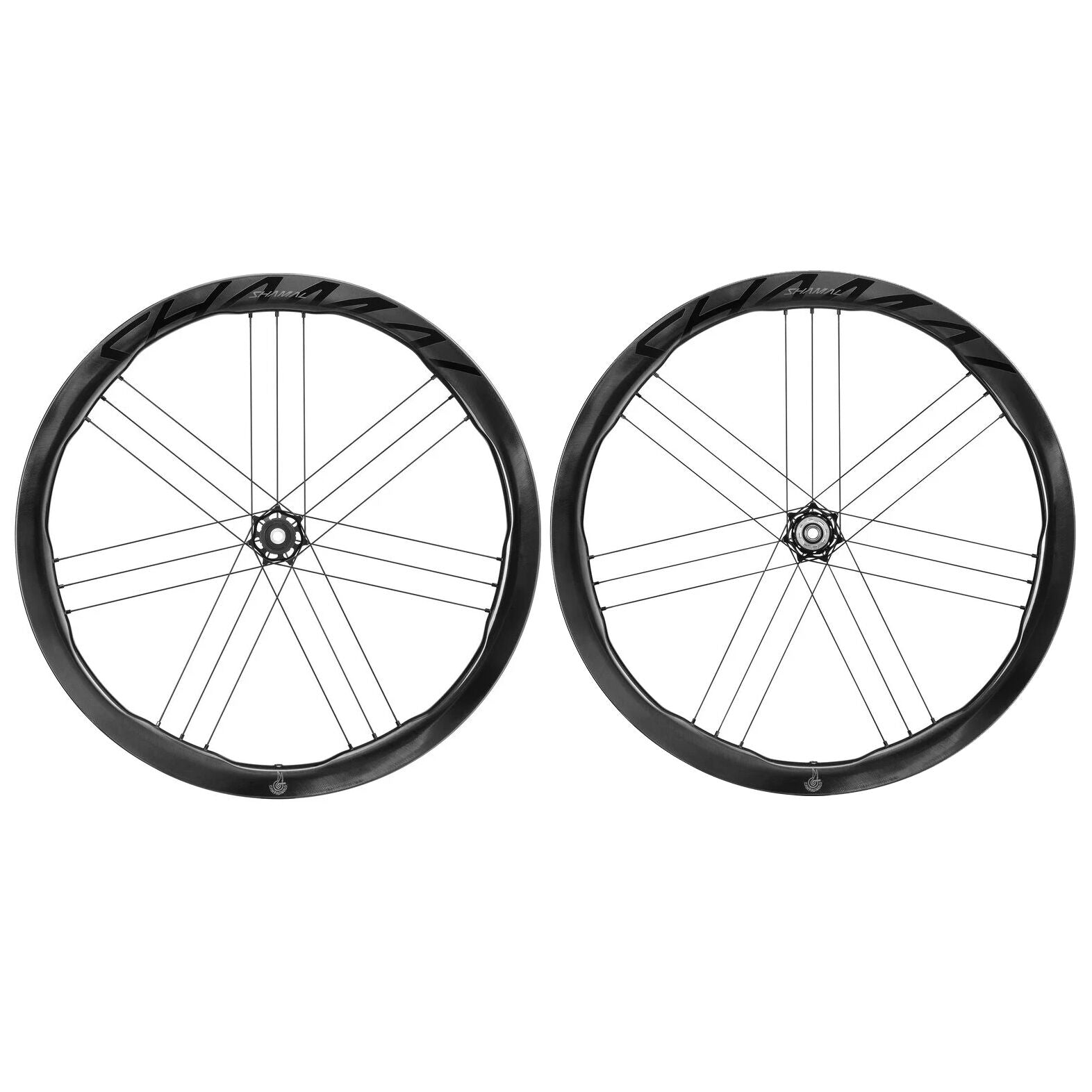

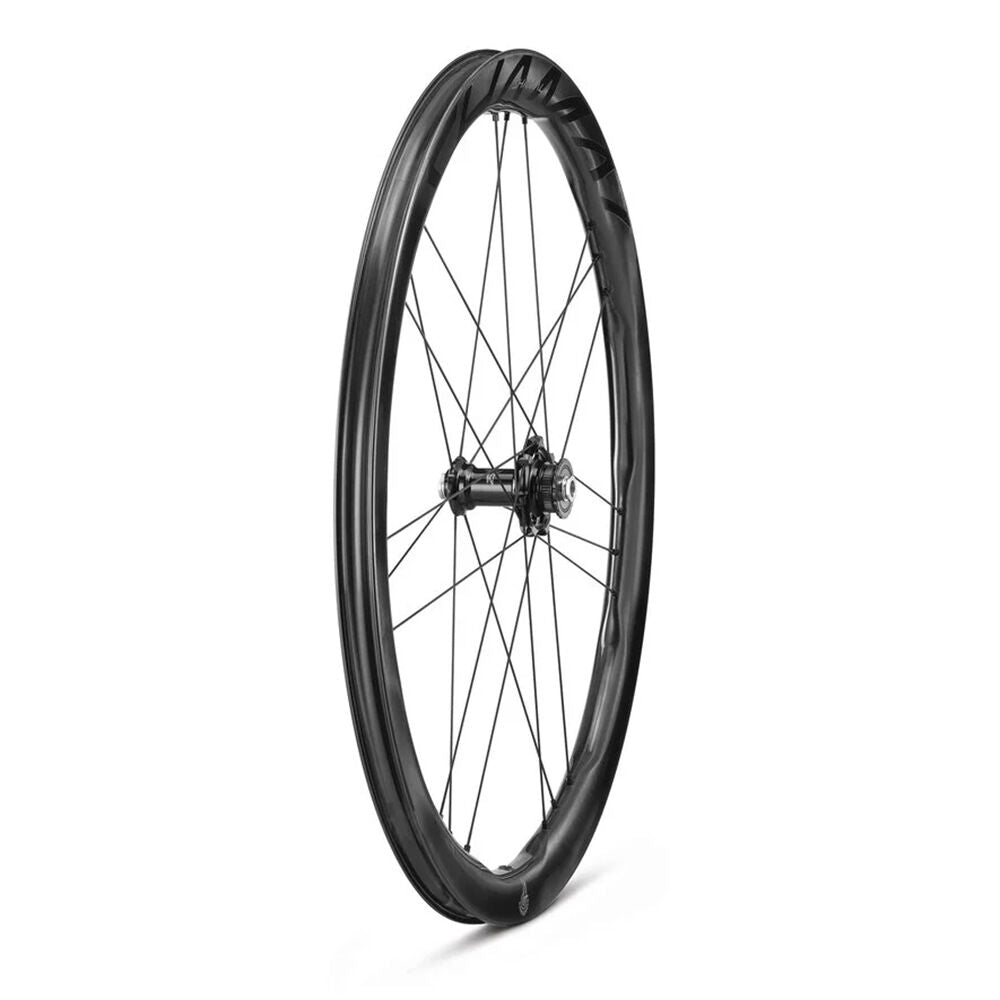

Couple Room Room Shamal Carbon C23 2025

The "Shamal" project has always represented the challenge towards the future for Campagnolo. Born in 1992, it was the first complete wheel and which introduced the concept of high profile, an absolutely revolutionary aerodynamic design for L’Epoca and immediately winning.
L'Innovative element lies in the design of the wheel called Dual Profile. A different modular profile perfected in the wind gallery and with road tests that - combined with hubs with differentiated flange - allows L'Adoption of shorter rays, to the advantage of overall rigidity, without this that the cyclist gives up comfort when pedaling.
As in the previous models, the new Shamal - Dual Profile also adopts a fiber with C -Lux finish, a solution that, translated on the road, allows optimal guidance in all conditions, even with wide covers allowing for it L'I also use in the gravel.
LThe soul of the new Campagnolo Shamal is also evident from the 2 Way Fit system, with which the cyclist can choose between the classic tire and air chamber or the tubeless solution, the latter is allowed by the upper bridge without holes, thus avoiding the use of the sealing ribbon.
The rays are arranged with the geometry Lacing G3, an iconic signature of the Campagnolo production, a patented system that ensures the cyclist the perfect balance of the tensioning and the best rigidity for the transfer of the power generated by the pedals.
The smoothness of the new Campagnolo Shamal is entrusted to aluminum hubs with a cono-calotta system, which allows easy maintenance of the bearings. Compared to the previous model, the new materials adopted allow weight saving of over one hecto, thus reaching the weight of 1,480 grams.

Characteristics

The best handling in all conditions: The new dual Profile carbon circle with one -way finish is designed to improve the handling of the bike to all speeds, offering comfort and driveability in all conditions. The C23 circle is perfect for LConfront with 28+ mm tires, making this wheel a complete road/all-rounder.
REACTIVITY: A new design of the monolithic hub combined with the iconic G3 geometry to obtain perfectly balanced tensions, increasing rigidity and improving energy transfer.
Made to last: Resistance and easy maintenance.

Technical specifications

Rays

• 21 Elliptical Aero Section Steel Rays to the front grouped with G3 system
• 21 steel rays with aero section elliptical on the rear grouped with G3 system

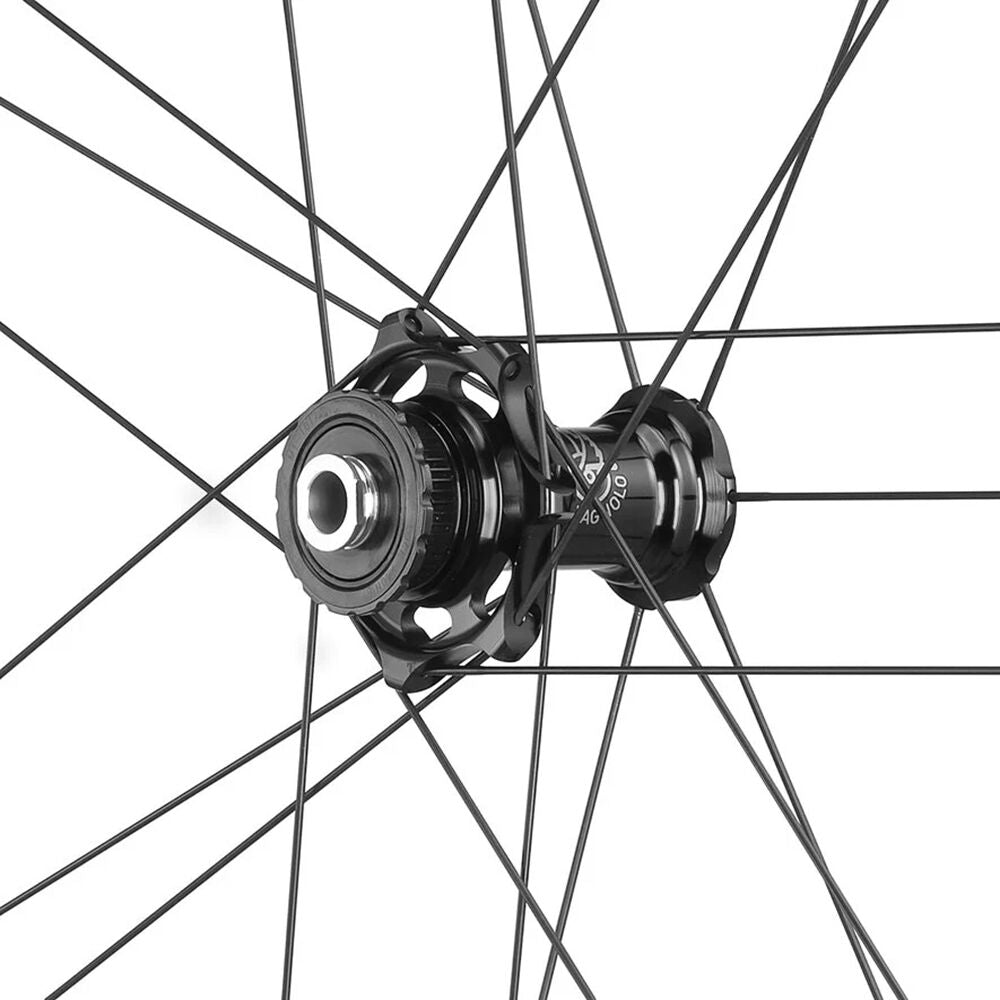

Hub

• Monolithic hub in black aluminum
• Mozzo joke: 100 mm front, 142 mm rear
• PIRNI: Passing pins 12 mm in aluminum
• CONO/Calotta bearings system: 15/28 mm front and 17/30 mm rear

Covers

• Cover
• Tubeless

Circle

• Profile height: 45/40 mm
• Circle material: carbon
• Section of the circle (alt/large): modular
• Internal width of the circle: C23/Hook

Assembly

• The Shamal - Dual Profile wheel is completely handled by hand by a specialized Campagnolo® operator and is 100% controlled with the use of electronic control tools. This procedure guarantees the maximum performance and reliability of each individual Campagnolo® brand wheel.

Included

• Tubeless valve 50 mm
• Valve reduction compass
• N ° 2 composite levers for removing roofs
• User manual
• N3W ™ adapter kit for compatibility with 11-12S boxes (N3W ™ country bodice version)

Technologies

Geometry Raggi G3
L’Iconic geometry G3 Campagnolo represents a challenge to the conventional configuration of the rays of the wheel for racing bikes. Groups of three parallel rays with straight head are in fact arranged in a 2: 1 ratio.

N3W
N3W, an acronym for Next 3 Ways, is a patented standard of free wheel bodice engineer to host 11, 12 and 13 speeds with departure 9, 10 and 11 teeth, while keeping compatibility with the less recent cassettes 9 and 10 speeds unaltered.

Momag
A magnet and lots of talent. Thus was born the patent of the tested "Mounting Magnete" system, or the Momag ™.

2-Way Fit ™
2-Way Fit ™ is LInnovative profile that allows you to mount both tubeless coverage and a classic cover.

C-Lux Finish
Fast wheels must have aesthetics and features up to par. The country carbon fiber rims show off the splendid mirror luxury campagnolo finish.
