Fizik Argo R1 Adaptive 3D Saddle

An advanced 3D printed bike saddle with a versatile short-nose design and a lightweight carbon rail system prioritizing comfort, responsiveness, and stability for various body types and riding positions.

The Fizik Adaptive 3D printed padding finally extends to the Argo family, creating the perfect solution for those seeking exceptional and lasting comfort on a versatile platform that provides both stability and balance.

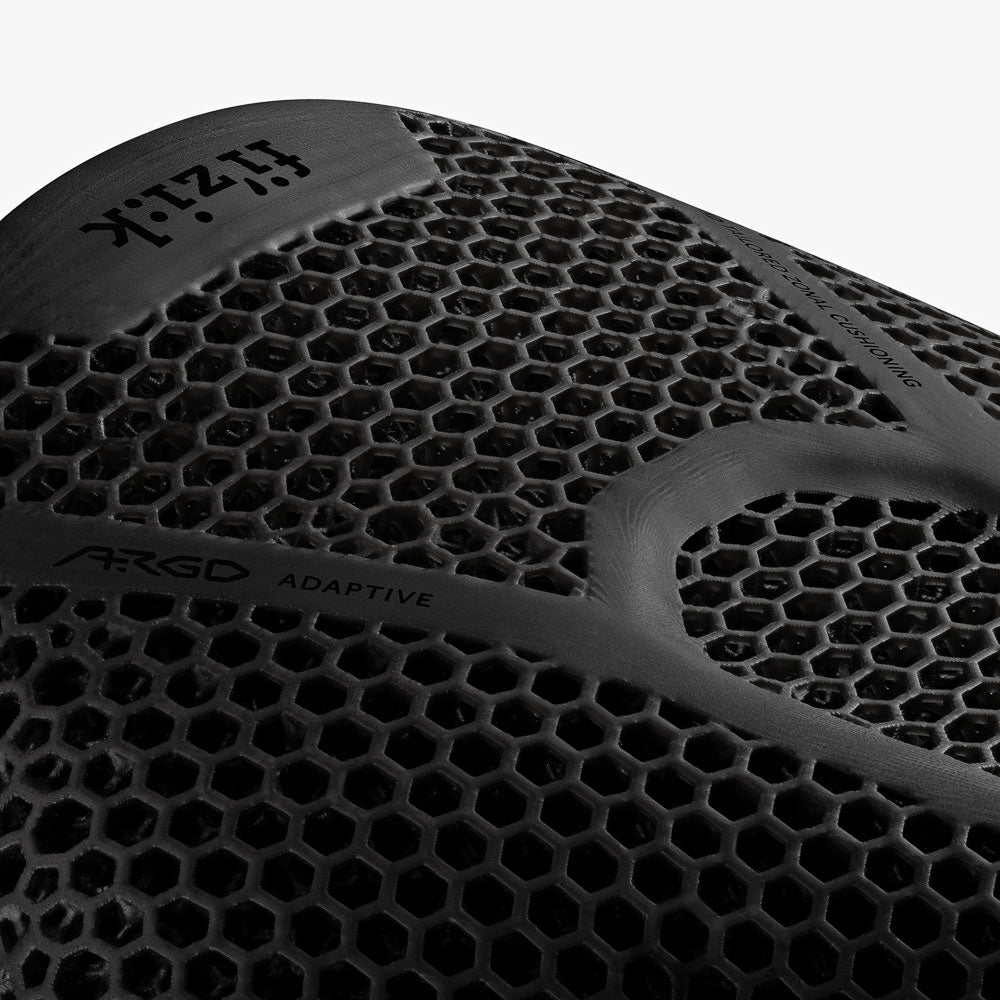

3D printed padding

The evolution of digital 3D printing has allowed us to develop a new saddle without the constraints or limitations imposed by traditional manufacturing methods and materials. The Adaptive saddle padding is made by Carbon using their revolutionary Digital Light Synthesis technology. DLS is an additive manufacturing process that uses digital ultraviolet light projection, oxygen-permeable optics, and programmable liquid resins to produce parts with excellent mechanical properties, resolution, and surface finish.

Custom zonal cushioning

Using Carbon technology, biomechanists and engineers have an unprecedented opportunity: to design and create multiple functional zones within the saddle, adjusting each separately for specific mechanical properties. Each of these key functional zones is designed for distinctive cushioning and mechanical response, progressively and seamlessly combined in the same padding. The result? A 60% reduction in peak pressure through better weight distribution for greater comfort across the entire saddle surface.

Argo for all roads

Our most versatile saddle shape, Argo, is comfortable on a variety of bike types and surfaces. Whether rolling on smooth asphalt or navigating technical terrain, Argo is designed to help riders find a better posture, placing them in a more grounded position for greater stability and better weight distribution. Additionally, the shorter design, with a drop nose, provides superior support when adopting a powerful and aerodynamic pedaling position.

Design, test, ride

To develop the ideal adaptive comfort zones, we studied the various riding positions and pressure points of professional and amateur cyclists, both in fizik labs and on open roads, gravel tracks, and trails. During every development phase, new iterations were carefully tested, with great attention to understanding how pressure patterns change based on different bike geometries, riding positions, and surface types.

Long-lasting performance

The saddle is very easy to clean. Even with the dirtiest road mud, gravel dust, or trail splashes, all you have to do is simply wash it with water. Everything that goes in, comes out. We subjected it to the toughest tests, simulating accelerated aging, UV aging, and wear resistance following strict protocols.

• Adaptive: Carbon® Digital Light Synthesis™ 3D printing technology, offering impeccably designed zonal cushioning
• Argo: versatile short-nose saddle that promotes stability and relieves pressure on soft tissues

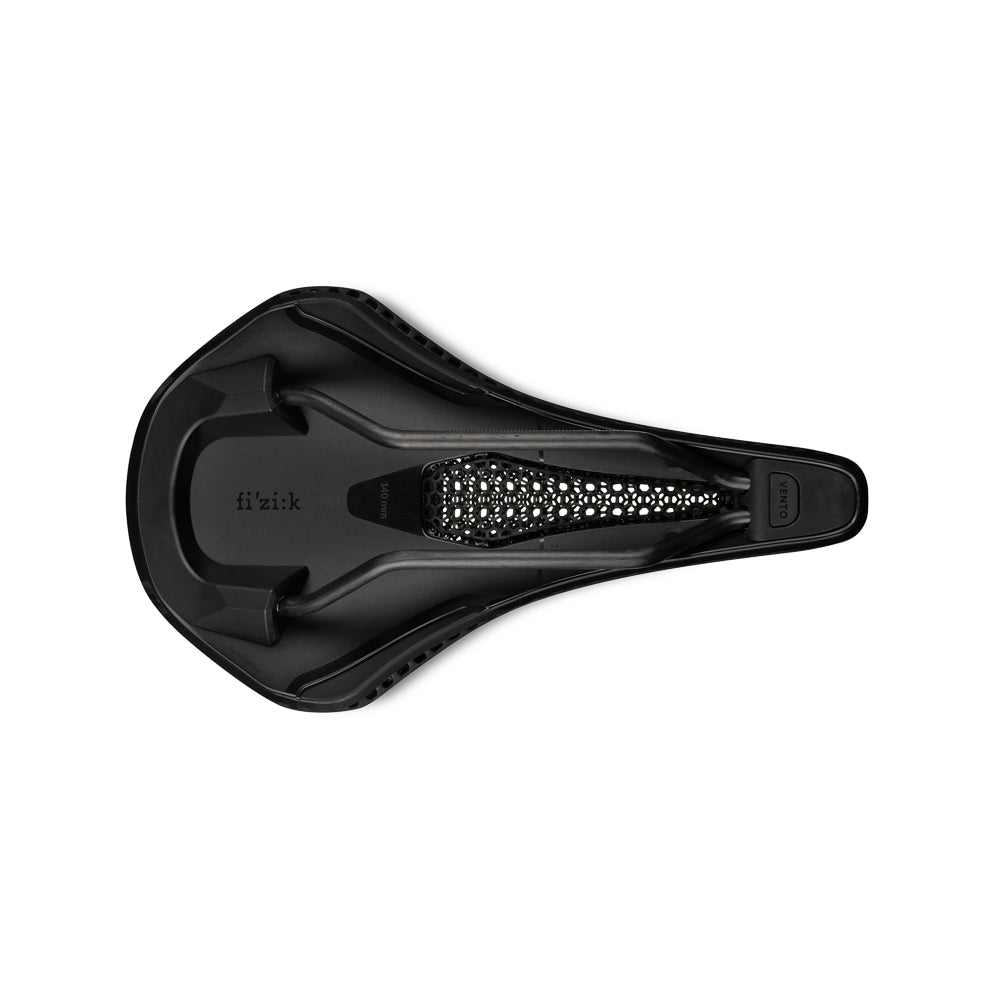

• R1: a combination of a carbon-reinforced nylon shell and a highly stiff carbon rail

VENTO ARGO R1 140 - ADAPTIVE

• Length: 265 mm
• Width: 140 mm
• Height at 75 mm width: 45.5 mm
• Length from nose to 75 mm width: 114 mm
• Weight: 190 g
• Rail: 7x9 mm

VENTO ARGO R1 150 - ADAPTIVE

• Length: 265 mm
• Width: 150 mm
• Height at 75 mm width: 45.5 mm
• Length from nose to 75 mm width: 114 mm
• Weight: 196 g
• Rail: 7x9 mm
