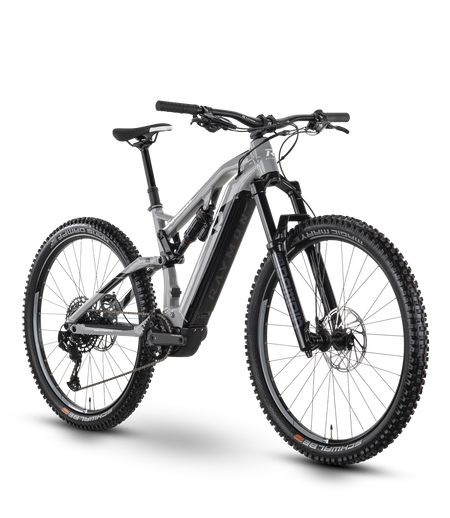

Raymon TrailRay 140E 10.0

Modern and understated at the same time: the TrailRay 140E 10.0 is a true eye-catcher simply for its compact appearance. With a maximum torque of 85 Nm, the beautifully integrated PW-X3 motor can tackle even the toughest climbs. The distinctive design of the Yamaha drive unit allows immediate support with sufficient torque as soon as pressure is applied to the pedal, not just after a certain number of rotations. The system provides less support on flat roads but more power on steep climbs, creating an optimized support feeling.

Yamaha PW-X3

The new Yamaha PW-X3 is smaller and lighter than its predecessor but offers a higher torque of 85 Nm, ensuring pure fun on any terrain.

Specifications

• Frame 29", Alloy 6061, integrated battery, Boost, 140 mm
• Fork RockShox Domain RC, DebonAir, Air, 150 mm, tapered
• Shock absorber RockShox Super Deluxe Select, Air, 230x57.5 mm
• Motor Yamaha PW-X3, 250 W, 85 Nm
• Battery Simplo, 720 Wh, 36 V
• Charger Simplo fast charger, 4 A
• Control Yamaha X
• Display Yamaha Interface X, ANT, Bluetooth
• Front brake SRAM G2 R, 4 pistons, Hydraulic disc brake
• Front brake disc SRAM Centerline, 200 mm, 6 bolts
• Rear brake SRAM G2 R, 4 pistons, Hydraulic disc brake
• Rear brake disc SRAM Centerline, 200 mm, 6 bolts
• Brake lever Aluminum, Adjustable brake lever, 2 fingers
• Derailleur SRAM SX Eagle, 12-speed
• Cassette SRAM PG-1210, 11-50 T
• Chain SRAM SX Eagle
• Chainring R Raymon, Narrow Wide, 38 T
• Crank arm R Raymon EC40, Forged aluminum, ISIS
• Shift lever SRAM SX Eagle, Single Click
• Front wheel Rim: Mach 1 TRUCKY 30, drilled, Tubeless Ready / Hub: R Raymon DA210F, 6 bolts, 15x110 mm, Thru axle
• Rear wheel Rim: Mach 1 TRUCKY 30, drilled, Tubeless Ready / Hub: R Raymon DA210R, 6 bolts, 12x148 mm, Thru axle
• Tire Schwalbe Magic Mary, Evolution, 62-622, 29x2.4, Tubeless Ready
• Rear tire Schwalbe Hans Dampf, Evolution, 60-622, 29x2.35, Tubeless Ready
• Stem R Raymon 35, 0°, Ahead
• Headset FSA Orbit ZS56/ZS56
• Handlebar R Raymon Riser 35 mm, 780 mm, Sweep: 9°, Rise: 20 mm
• Grips R Raymon MTB, Screw knob
• Saddle R Raymon MTB
• Seatpost R Raymon, 34.9 mm, Dropper seatpost
• Pedals R Raymon, aluminum
• Chain guide ISCG-05
• Weight 26 kg
• Maximum allowed weight 130 kg
