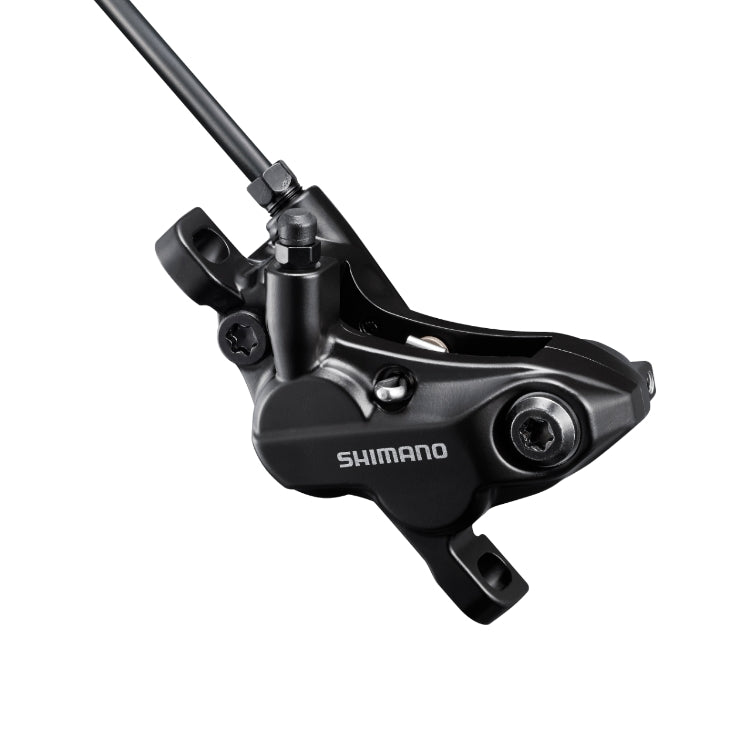

4-Piston Hydraulic Disc Brake Caliper BR-MT520
Couldn't load pickup availability
Regular price
ā¬48,67
incl. VAT
Regular price
-34%
ā¬74,08
Sale price
ā¬48,67
incl. VAT
With a robust 4-piston design, the SHIMANO MT520 hydraulic disc brake increases rider enjoyment and confidence in the bike.
FEATURES
High brake performance increases rider confidence and enhances enjoymentWider contact area with dual-diameter opposed piston designFour-piston caliperHighly responsive braking force for greater controlQuick initial pad contact and controllable brake force modulationSERVOWAVE
Stable braking and longer durabilitySlim and durable master cylinder designPad and piston with thermal insulation
Ā
PRODUCT SPECIFICATIONS
| MODEL NO. | BR-MT520 |
|---|---|
| SERIES | SHIMANO |
| Color | Black |
| Brake type | Hydraulic disc brake |
| Brake hose (kit) | SM-BH90-SS |
|---|---|
| Hose joint | Straight |
| Brake hose color (kit)|1 | Black |
| J-Kit spec (for OEM) | ā |
| Pad|Standard 1 | D03S-RX Resin (without fin) |
| Recommended brake lever | BL-MT501 |
| Recommended disc brake rotor | SM-RT70 |
| Compatible rotor size|140 mm (SS) | ā |
| Compatible rotor size|160 mm (S) | ā |
| Compatible rotor size|180 mm (M) | ā |
| Compatible rotor size|203 mm (L) | ā |
| Compatible rotor size|220 mm (LL) | ā |
| ONE WAY BLEEDING | ā |
| Mounting type | Post Mount type |
| Piston | 4 |
| Brake caliper fixing bolt|Tool size | 5 mm |
| Brake caliper fixing bolt|Anti-loosening method | Snap ring |
| Pad mounting | Cotter pin |
×
![]()
×
![]()
