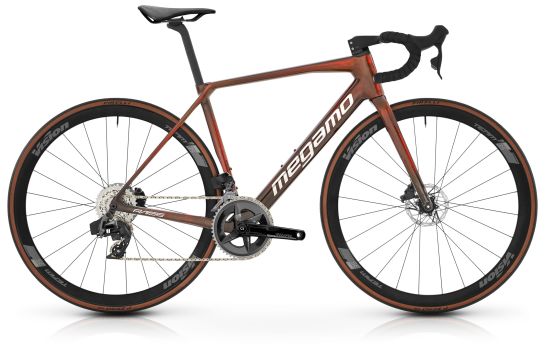

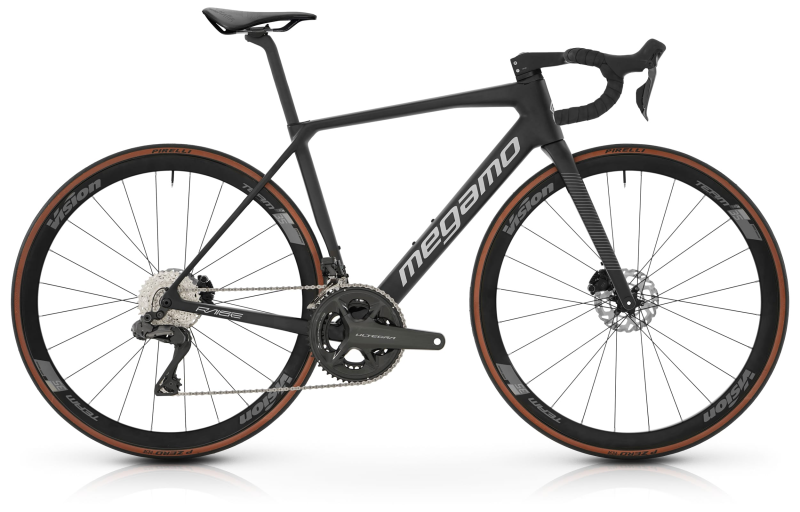

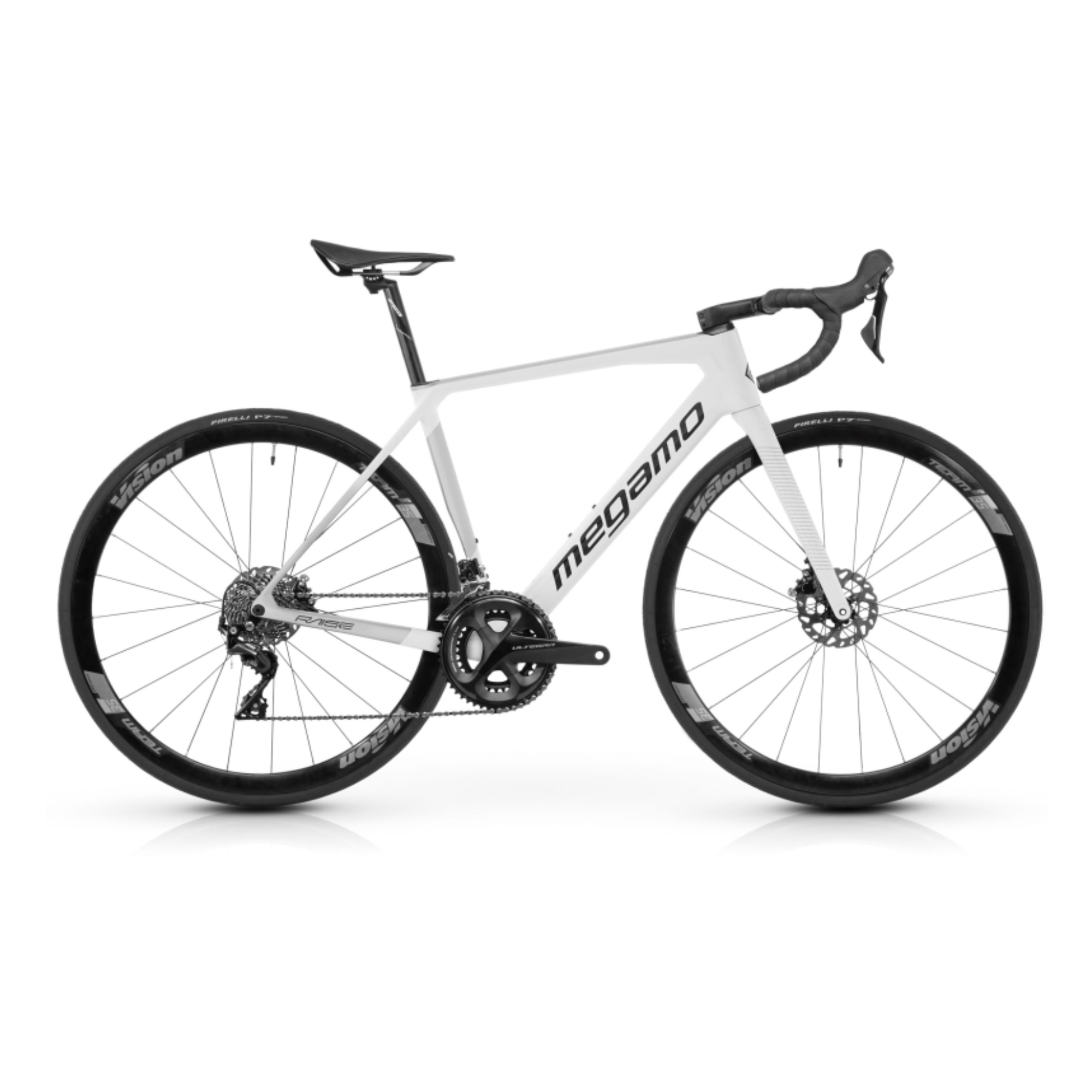

Megamo Raise 10
Couldn't load pickup availability
Regular price
€2.437,55
incl. VAT
Regular price
-19%
€3.022,79
Sale price
€2.437,55
incl. VAT
The Raise was designed for versatile cyclists, for those who want to experience new sensations on the road and dominate the street. Its carbon frame and integrated handlebar provide lightness and stiffness to a bike that, besides maintaining a clean and attractive aesthetic, allows you to cover long distances without sacrificing comfort.
If you want to enjoy a lightweight, fast, comfortable, and versatile bike, the Raise is undoubtedly the best option.
Specifications
Frame Kit
Frame
Carbon Advanced Composite frame, Full Internal Cable Routing, Flat Mount Disc Brakes 12x142
Fork
Carbon Advanced Composite fork, Full Internal Cable Routing, Flat Mount Disc Brakes 12x100
Headset
Integrated Internal Routing, 3 positions, 3 different heights
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 11s
Front Derailleur
Shimano Ultegra R8000 11s
Shift Levers
Shimano Ultegra R8020 11s
Crankset
Shimano Ultegra R8000 11s 50-34
Cogs
Shimano Ultegra R8000 11-30t 11s
Brakes
Brakes
Shimano Ultegra R8020 11s Hydraulic Disc
Wheels
Tires
Pirelli Road P7 700x26 / Vittoria Zaffiro V 700x25
Hub
Vision Team 35 Disc 12x100 / 12x142
Wheels
Vision Team 35 Disc
Components
Handlebar
Megamo Fov Compact
Stem
Integrated Internal Routing
Seatpost
Megamo 27.2mm
Saddle
Sellie Italia Model X Superflow
We reserve the right to change website information without notice, including specifications, models, colors, and materials.
RAISE 10 GEOMETRY (23)
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
|
A
|
T/T | 507 | 523 | 541 | 559 | 576 |
|
B
|
C/S | 405 | 405 | 405 | 405 | 405 |
|
C
|
S/T | 422 | 453 | 473 | 499 | 525 |
|
D
|
H/T | 103 | 116 | 135 | 156 | 176 |
|
E
|
REACH | 357 | 369 | 381 | 393 | 405 |
|
F
|
STACK | 505 | 522 | 541 | 560 | 580 |
|
G
|
BB HEIGHT | 270 | 270 | 270 | 270 | 270 |
|
H
|
FRONT ANGLE | 70.5º | 72º | 72º | 72º | 72º |
|
I
|
REAR ANGLE | 73.5º | 73.5º | 73.5º | 73.5º | 73.5º |
| FIT GUIDE | |
| X-SMALL |
158 - 168
|
| SMALL |
165 - 172
|
| MEDIUM |
170 - 182
|
| LARGE |
182 - 190
|
| XLARGE |
188 - 210
|
×
![]()
×
![]()
