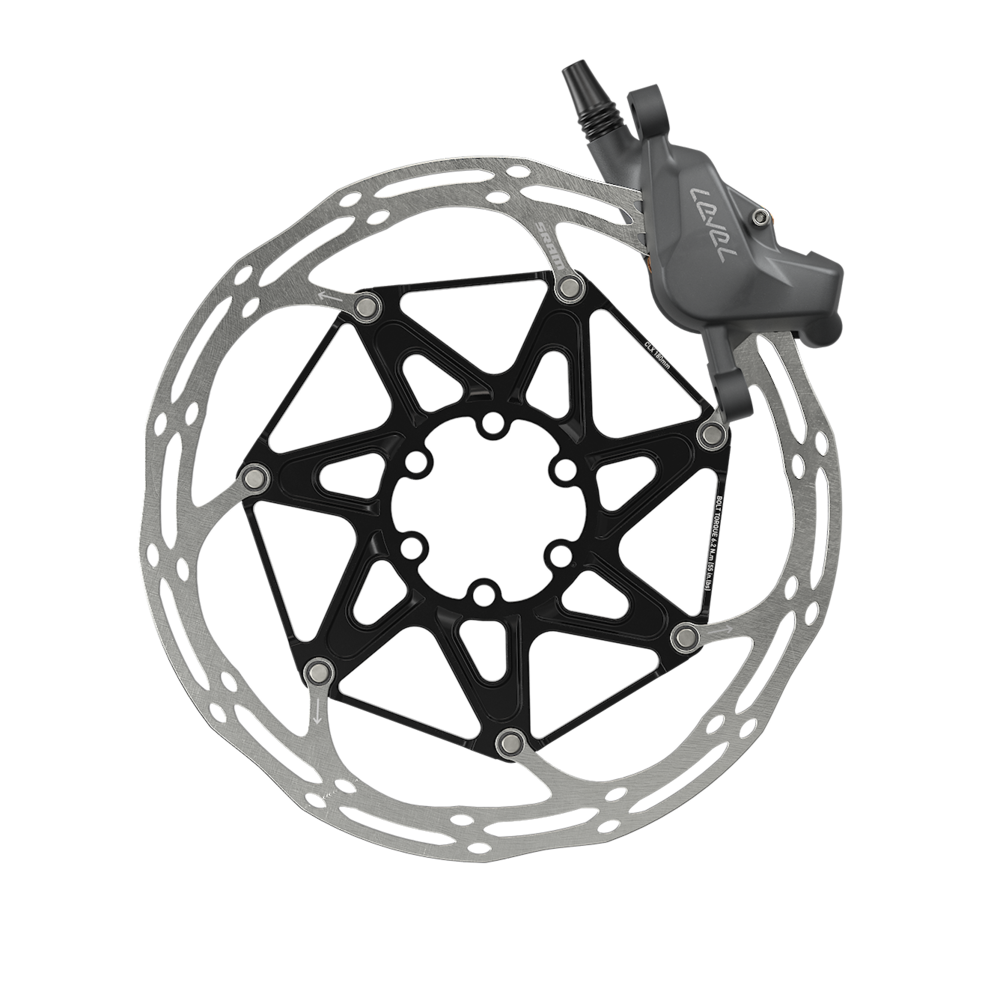

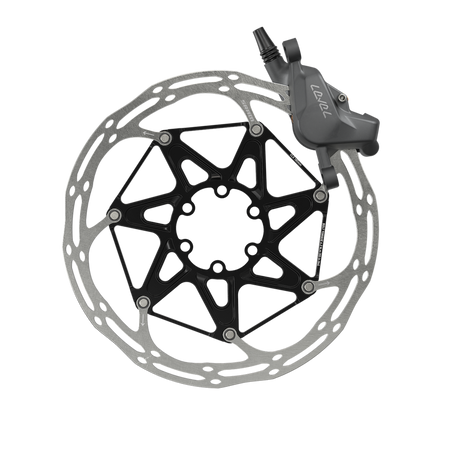

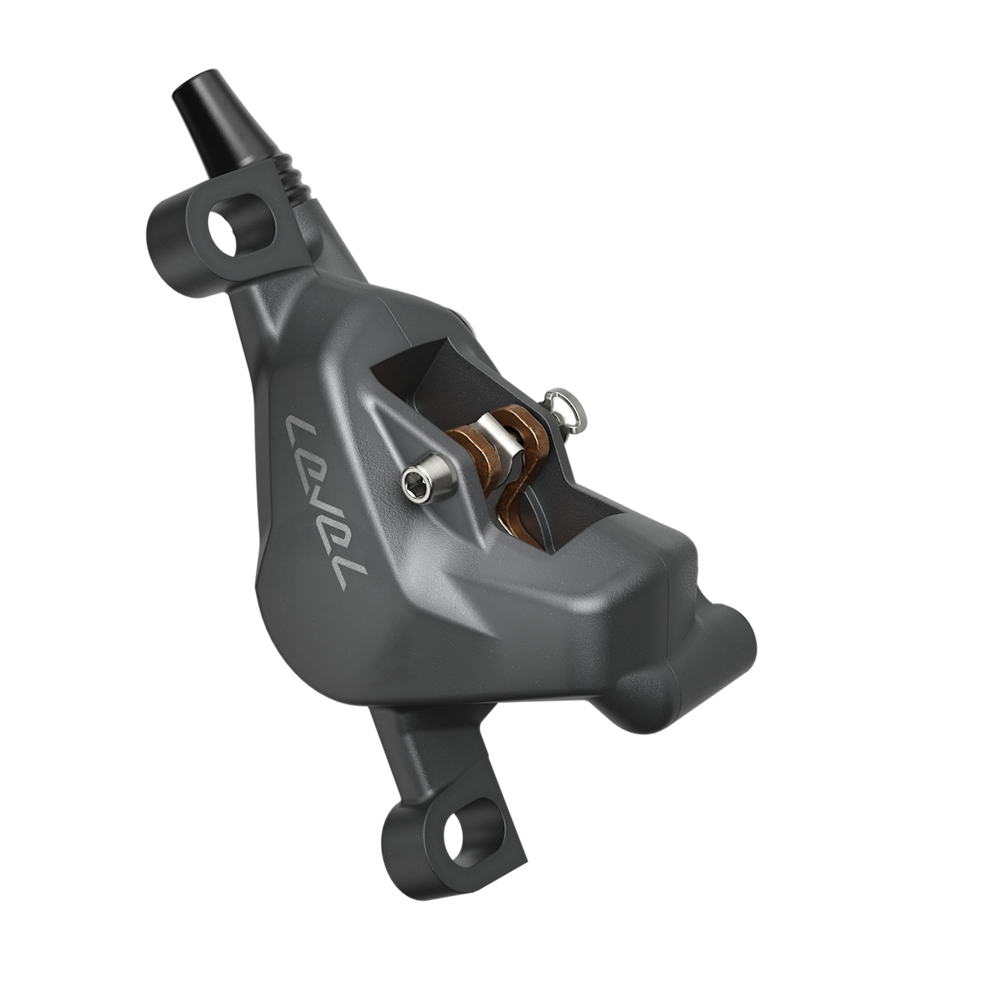

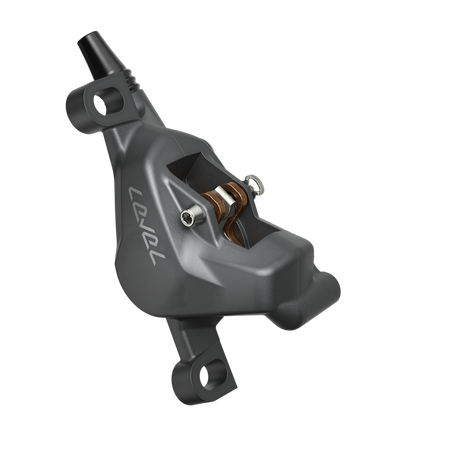

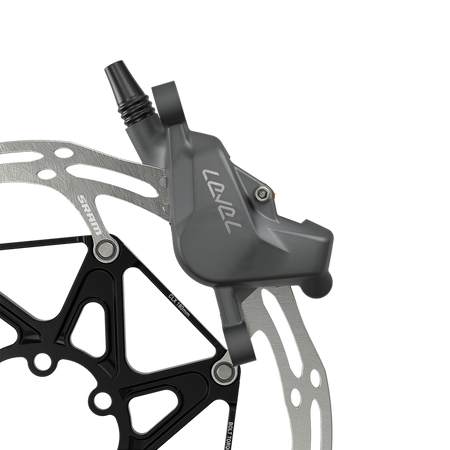

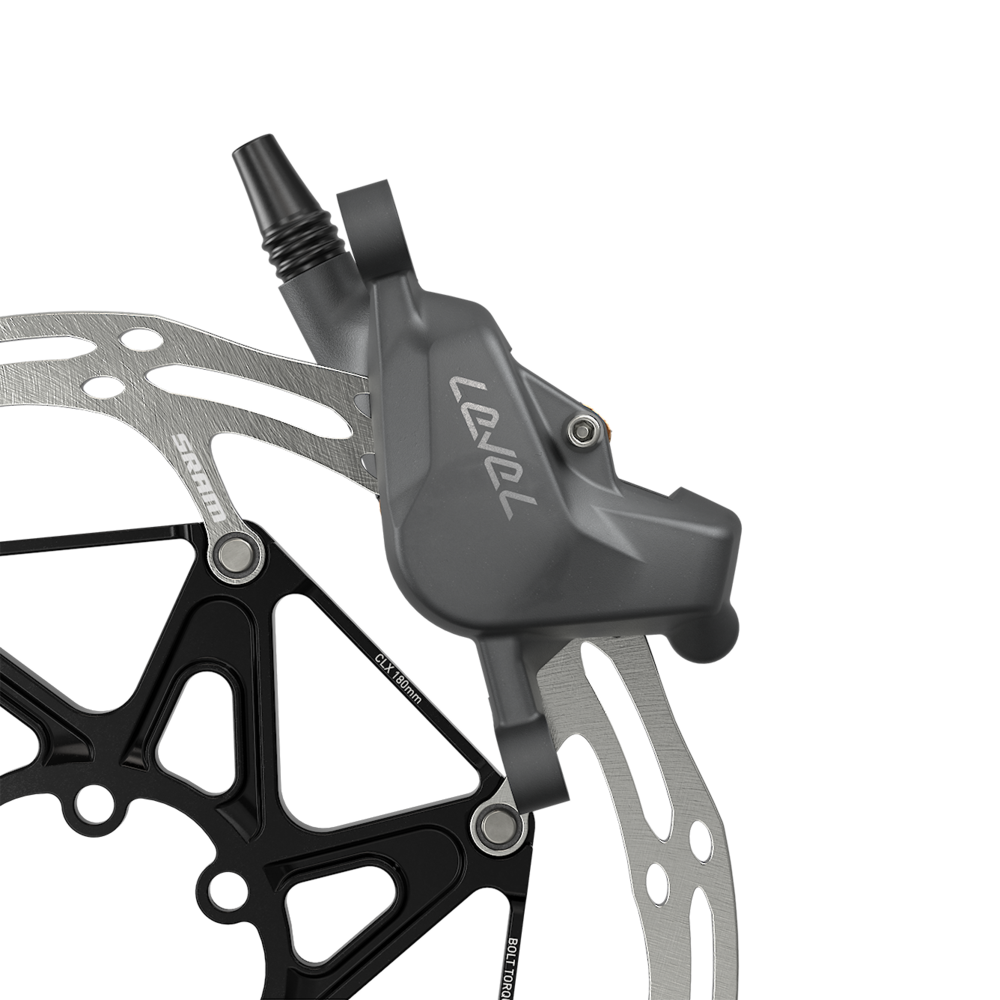

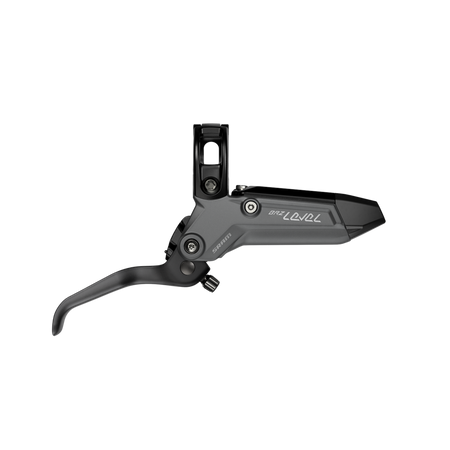

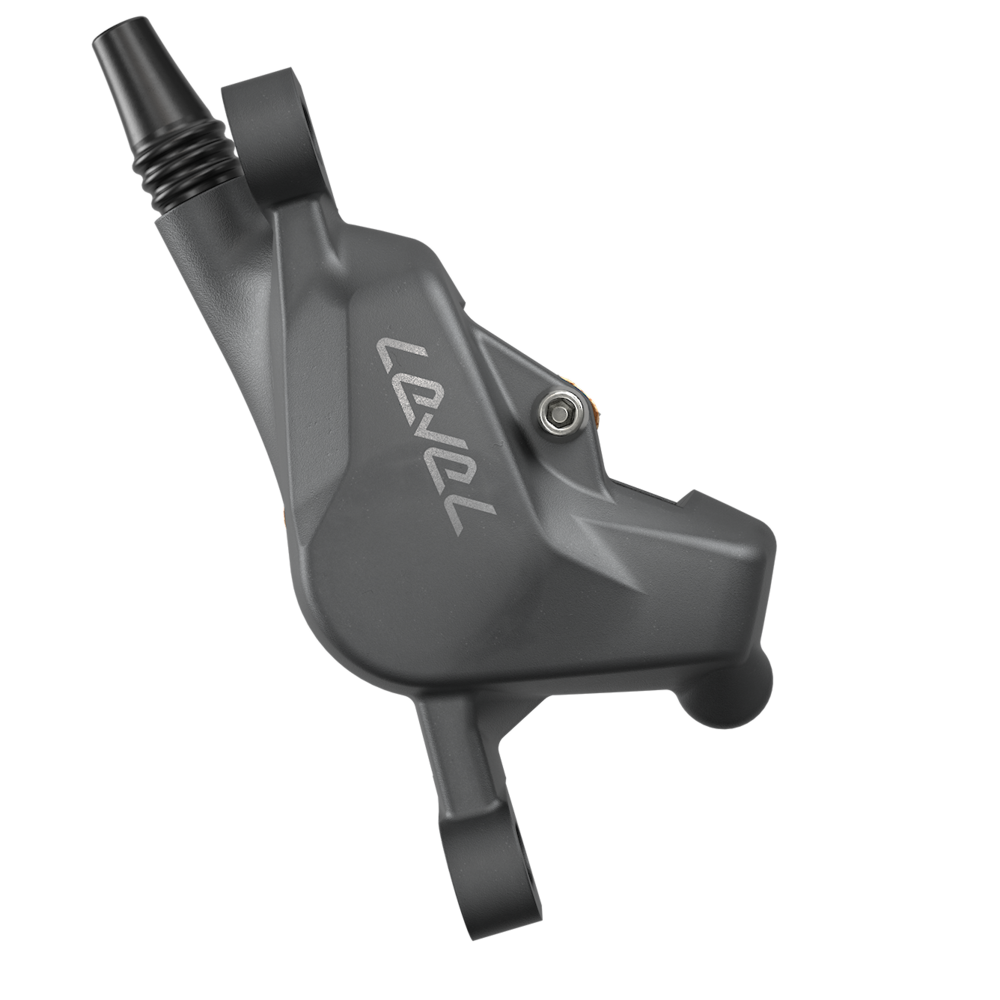

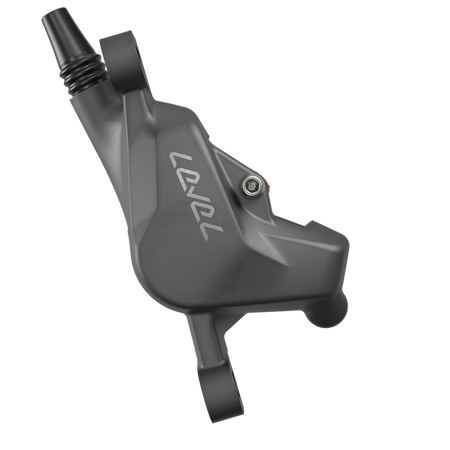

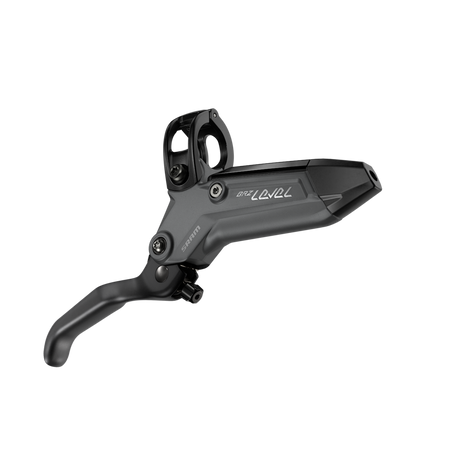

Sram Level Bronze Stealth 2-Piston Disc Brake

Out of stock
SKU: 00.5018.233.000 Barcode: 710845890444
Pliers
€77,93 incl. VAT
-39% €126,76 €77,93 incl. VAT
Sram Level Bronze Stealth 2-Piston Disc Brake



Level Bronze Stealth features our new stealth body to give you one of the sleekest brakes on the market. Offers the power-to-weight performance you expect from Level with a new lever design made specifically to create a clean, fast-looking cockpit. Our tool-free reach adjustment ensures easy customization.

  • Invisible body design to complement our AXS cockpit
  • Modern XC power for today's toughest races
  • Designed for easy installation and maintenance
  • Tool-free reach adjustment for easy customization

Technology

Direct Link

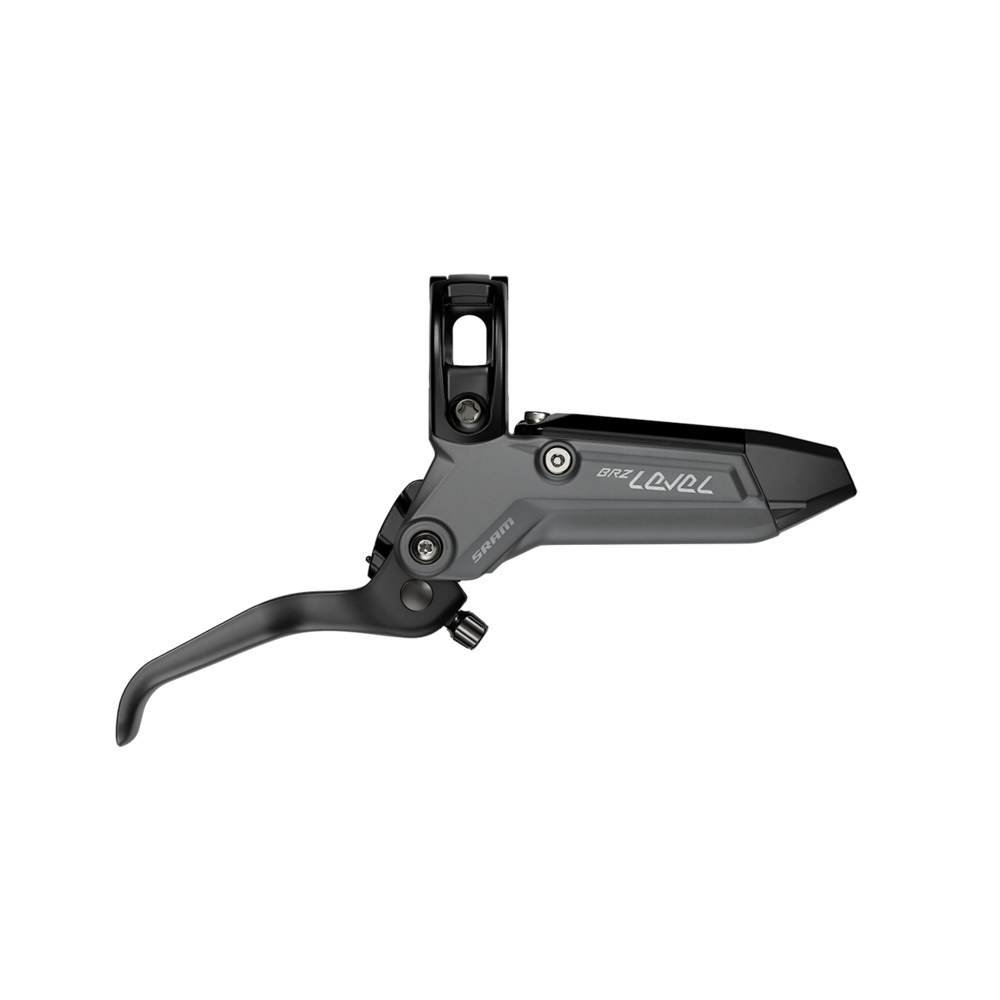

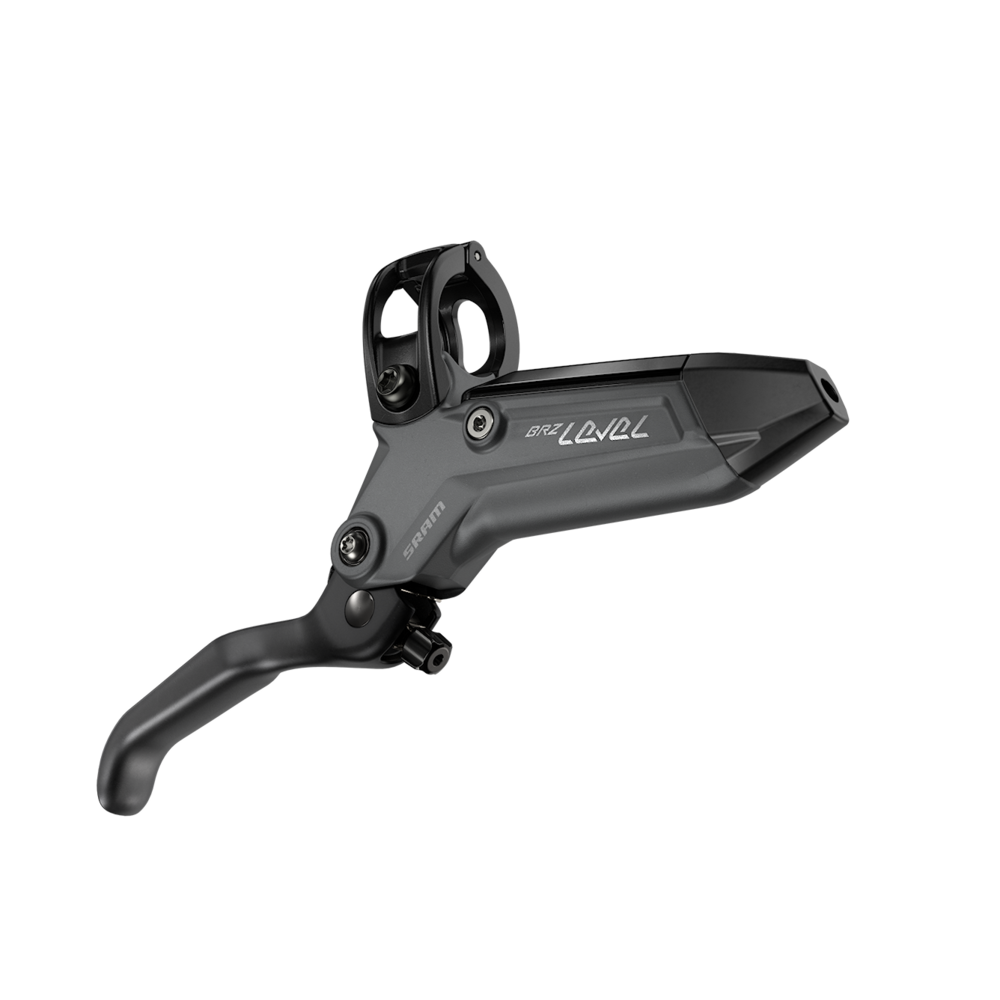

The SRAM DirectLink lever design produces a solid and positive feel the moment you press the lever to activate the brake. Provides a practical solution to give you precise control.

Timing Port Closure

The timing port of a hydraulic brake is the connection between the reservoir and the lever cylinder bore. When the lever is pressed, a cup seal passes over this area and closes the port, pressurizing the system. The SRAM distribution port closure system features durable seals and an ultra-smooth cylinder bore finish that produces reliable braking power and consistency.

Expandable Bladder

The new SRAM brake lever design includes a reshaped membrane that helps regulate and reduce air bubbles. The membrane is specially shaped to evacuate air from the lever and push fluid exactly where needed. The result is better backpressure release, producing reliable braking power and consistency.


Specifications

APPLICATION (DB) MTB
BRAKE TYPE Hydraulic
COLOR (DB) Polar dark anodized blast
BLADE MATERIAL Aluminum: forged
ORIENTATION Front rear
PAD TYPE (DISC) Organic with steel backing
BRACKET (DISC BRAKE) Direct mount DIR, Intl Std (rear 160 mm, front rotor 180 mm) 20I, Intl Std (rear 180 mm, front rotor 200 mm) 40I, Intl Std (rear rotor 200 mm) 60I, Post mount (20 mm bracket) 20P, Post mount (20 mm spacer) 20S, pole mount (40 mm bracket) 40P
REACH ADJUSTMENT Tool-free
REGULAR CONTACT NO
HYDRAULIC FLUID PUNTO 4
LEVER PIN Bushing
WEIGHT (G) 267
WEIGHT BASED ON Rear-based, SJ, DIR, 1800mm, with pads (no clamp, no mounting hardware, no pad spacer, no rotor/bolts)
