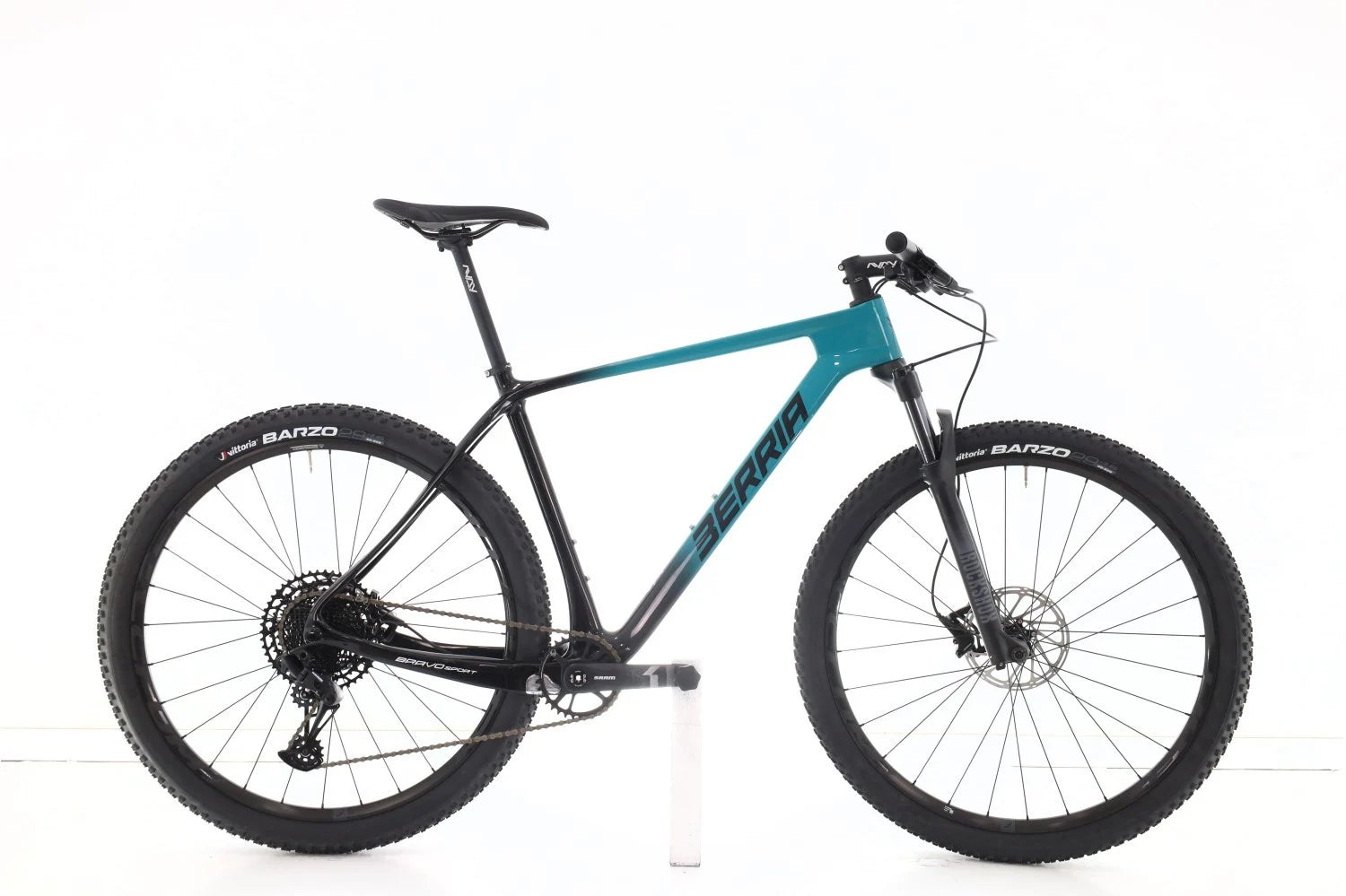

Berria Bravo Sport

Bravo is a new bicycle concept that combines the most important qualities of a hardtail bike with those of a full suspension. It is the perfect balance between speed and stability and between agility and traction.

Specifications

Frame: Bravo 5 EVO, XCO Racing Geometry BGC, Full carbon HMR2X, Triple monocoque
Fork: Rock Shox Judy TK, 15x110mm Maxle Stealth, Tapered steerer, 100mm travel
Material: Full carbon fiber HMR2X
Handlebar: Avanforce AF3, Aluminum 6061, 31.8mm, width 740mm, weight 330g
Seatpost: Avanforce AF3, Aluminum 6061, 0 offset, 27.2 x 400mm
Saddle: Selle Royal 2058, Steel rails, length 285mm, width 145mm, weight 315g
Derailleur hanger: UDH Universal Derailleur Hanger
Rear derailleur: SRAM SX Eagle Aluminum cage, 12 Speed
Brake lever: SRAM SX Eagle Trigger 12V, X-actuation, weight 133g
Cassette: SRAM XG1210, 11-50T, weight 730g
Chain: SRAM SX Eagle CN-EAGL-SX-A1
Crankset: SRAM X1 DUB Eagle Boost 34T 170-175mm
Brakes: SRAM LEVEL Disc 180/F and 160/R
Tires: VITTORIA BARZO 2.25X 29, Rigid Bead, weight 800g
Wheels: CUSTOM AVANFORCE 29"-27mm TLR HUB SHIMANO MT 400, weight 2020g

*The manufacturer reserves the right to change website information without notice, including specifications, models, colors, and materials.

*Images are for illustrative purposes only and may not correspond to the product description.

	XS	S	M	L
	150-165 cm	160-175 cm	175-185 cm	180-198 cm
1 Seat tube	380 mm	425 mm	470 mm	520 mm
2 Top tube	558 mm	581 mm	615 mm	645 mm
3 Head angle	68.6°	69.1°	69.1°	69.6°
4 Seat tube angle	75°	74.5°	74°	73.5°
5 Wheelbase	1080.9 mm	1094 mm	1123.2 mm	1145.3 mm
6 Chainstay	427 mm	427 mm	427 mm	427 mm
7 Head tube	93 mm	95 mm	100 mm	105 mm
8 Bottom bracket dropout	66 mm	64 mm	64 mm	64 mm
9 Trail	97.7 mm	94.2 mm	94.2 mm	90.7 mm
10 Fork offset	44 mm	44 mm	44 mm	44 mm
11 Fork length	516 mm	516 mm	516 mm	516 mm
12 Reach	396.2 mm	413.3 mm	440.4 mm	462.5 mm
13 Stack	602.4 mm	604.7 mm	609.2 mm	616.2 mm
